Solar Panel Mounting Brackets

Solar Scout Solar Panel Mounting Z Brackets

Colour: Silver
Brand: Solar Scout
Material: Aluminium alloy

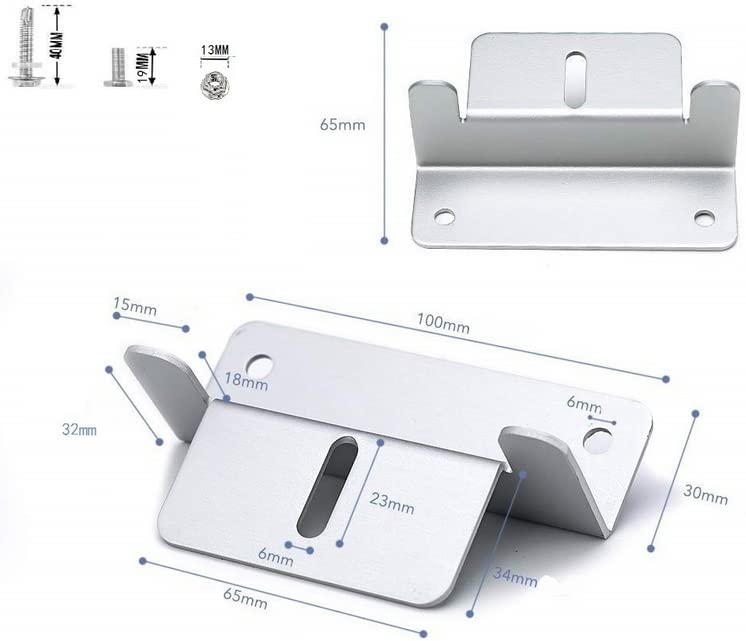

Item dimensions: L x W x H - 11 x 7 x 4.3 centimeters
Weight: 230 Grams

Description:

The Solar Scout Z-Bracket Mount System is designed to support the installation of single solar panel units; generally in off-grid installations. These units are ideal for installation on the roofs of RV's, Campers, Caravans, Boats and non-inhabited dwellings such as sheds or garages. It is also suited as attachment to a user made structure such as a wooden frame. The system comes complete with all fasteners to secure the system to the installation surface. This system makes the installation of small solar systems easy; affordable and quick.

*Please Note: Not recommended for panels over 160 watt. If you do want to use this product for panels over 150 watt; you would need 2 sets of this Z bracket per panel*

KEY FEATURES

• Lightweight
• Aluminum corrosion-free construction.
• Ease of installation
• Ideal for mounting small solar panels.
• Mounts panels to RVs; trailers; boats or yachts.
• Perfect for irregular surfaces
• Pre-assembled with bolts and washers

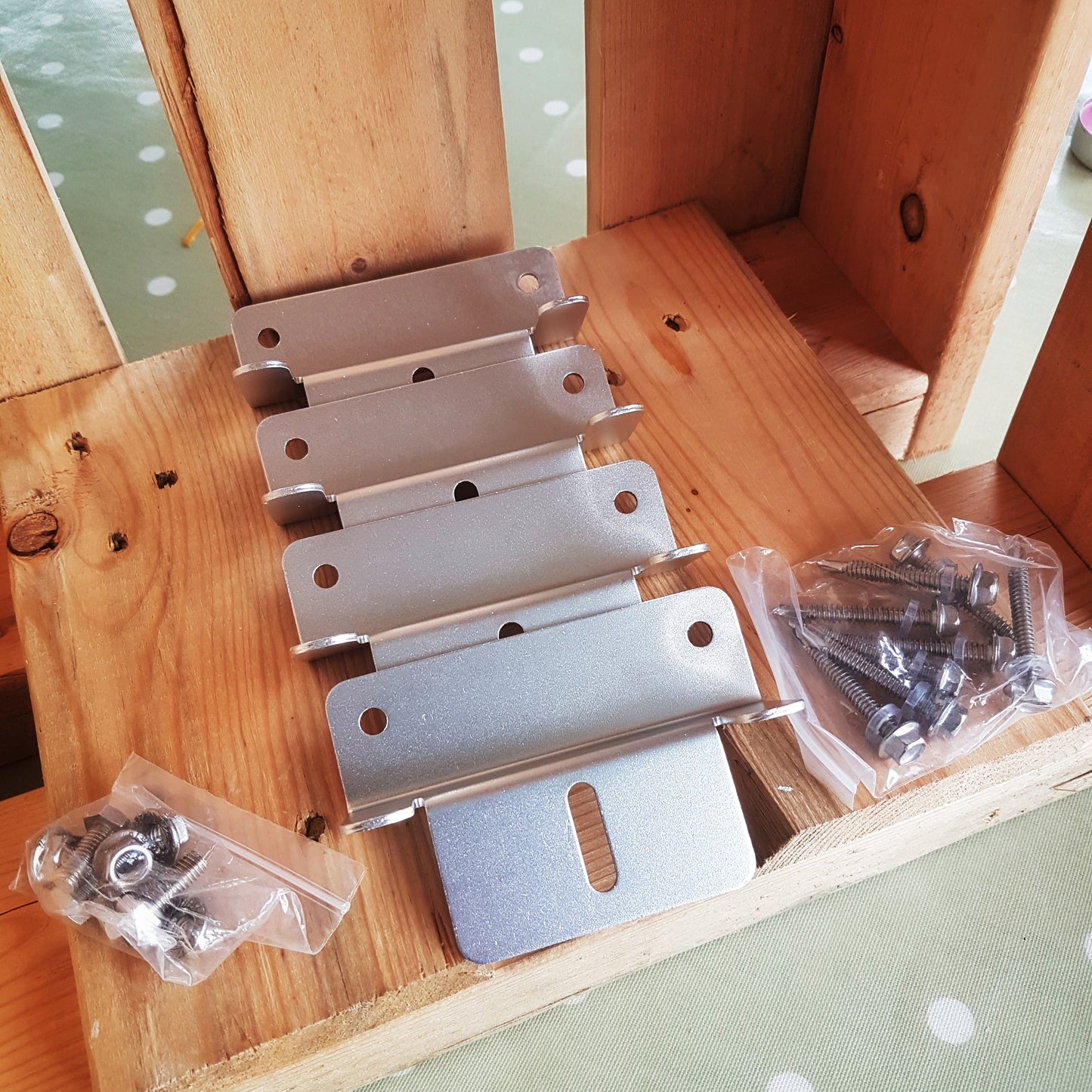

BOX CONTENT + SPECIFICATION
