300watt Solar Scout Monocrystalline Solar Panel Kit

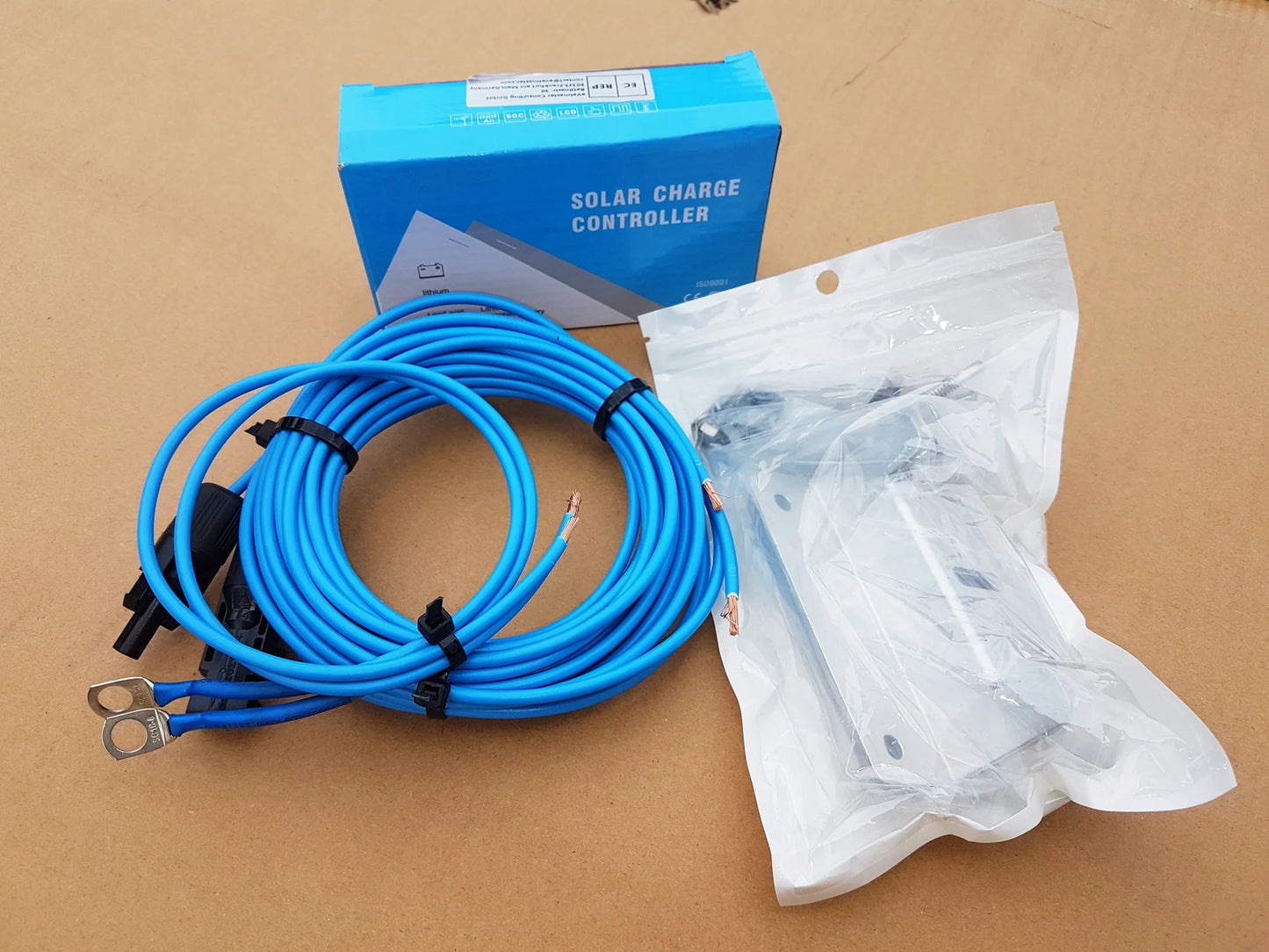

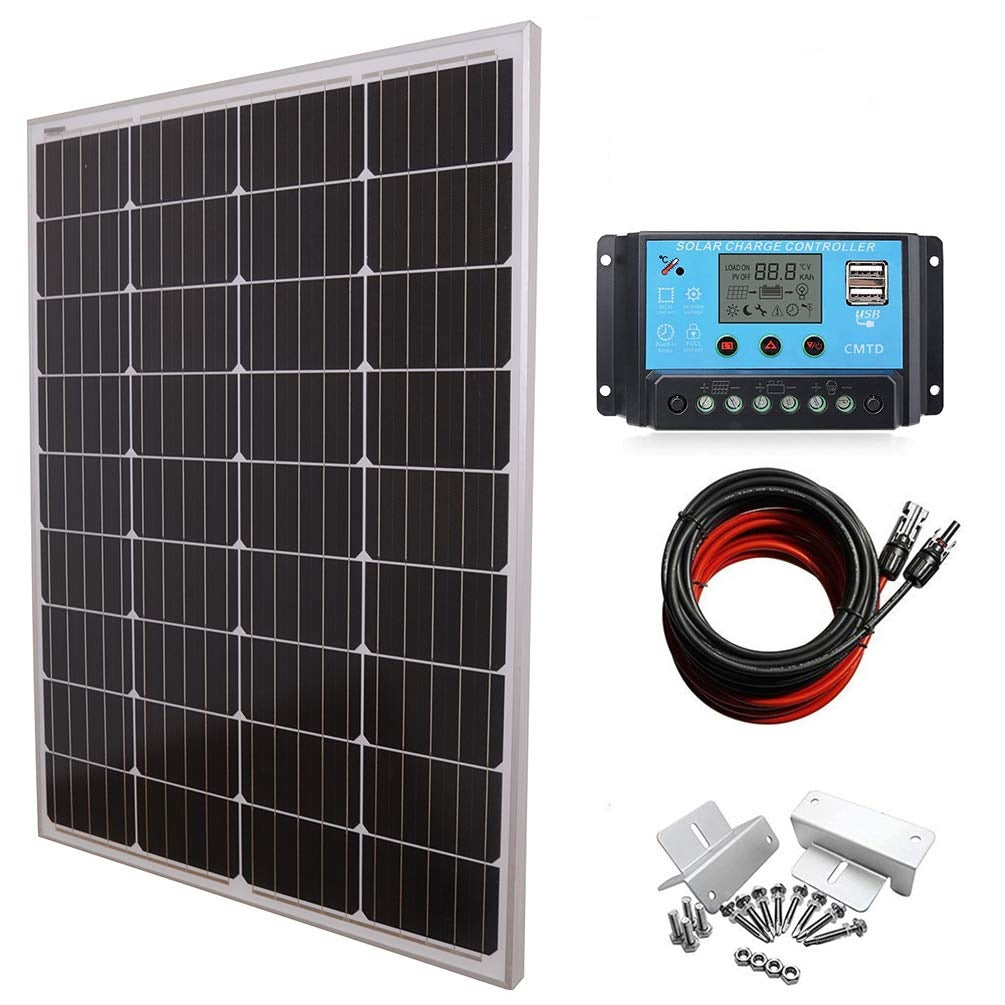

Kit Includes:

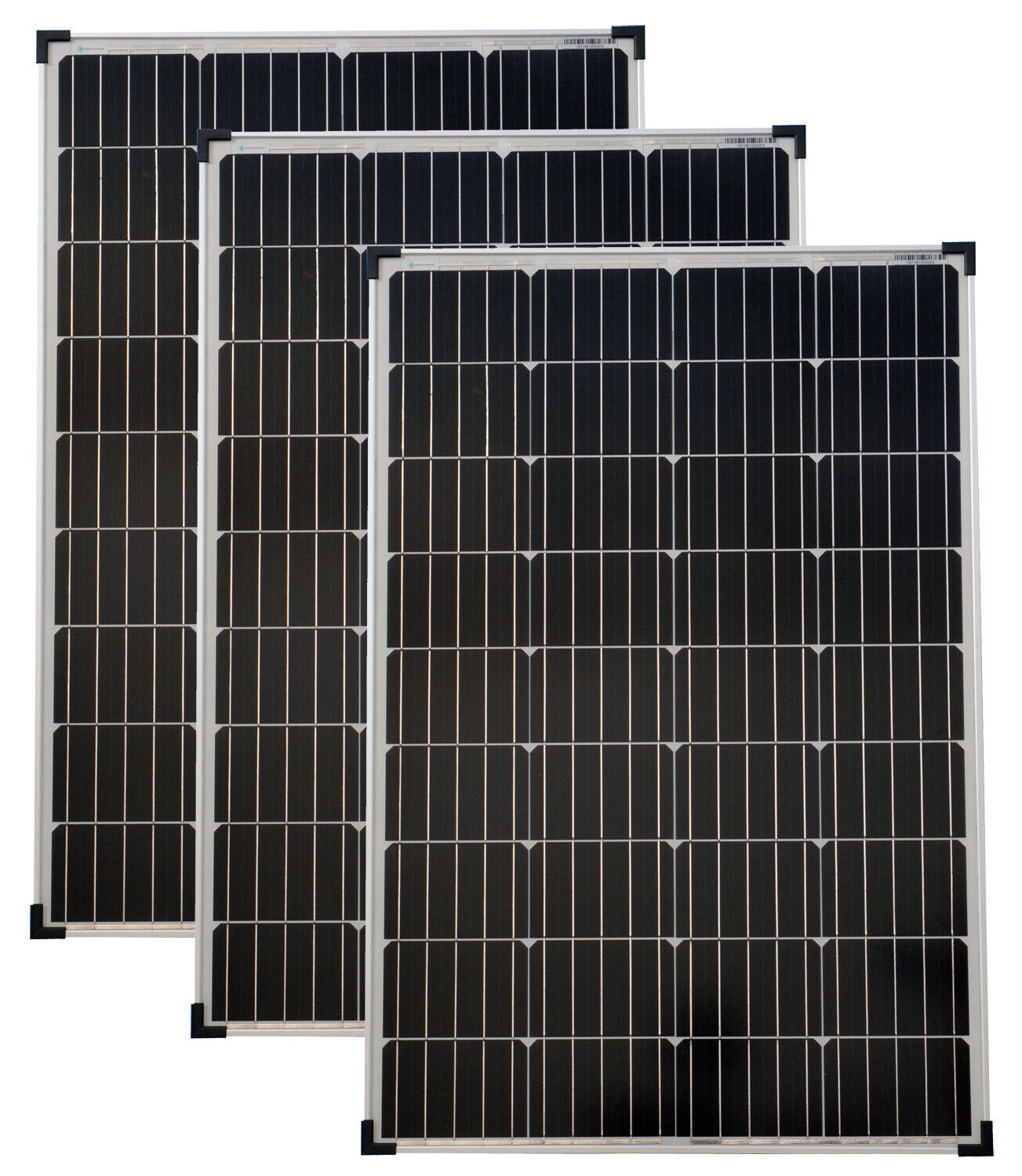

• 3 x 100watt Monocrystalline Solar Panel

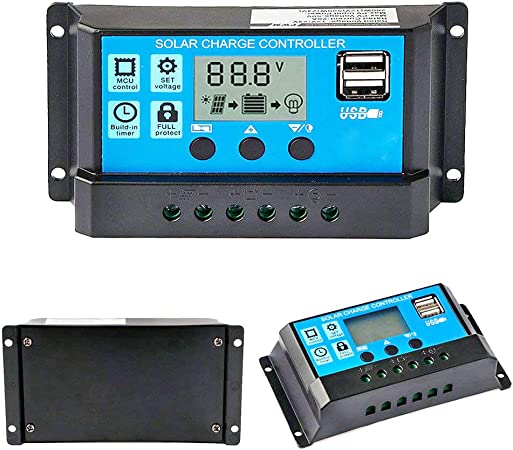

• 1 x 30a Solar charge controller

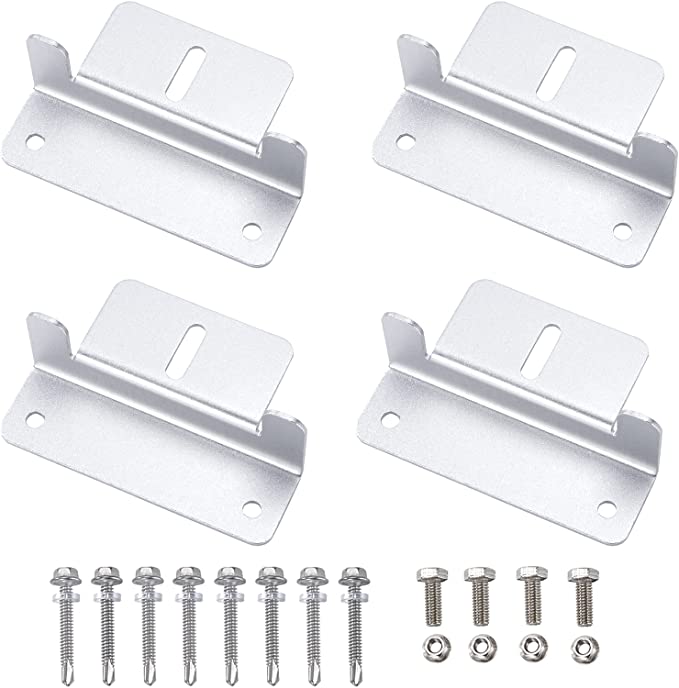

• 3 x Mounting Brackets sets (12 sets of brackets altogether)

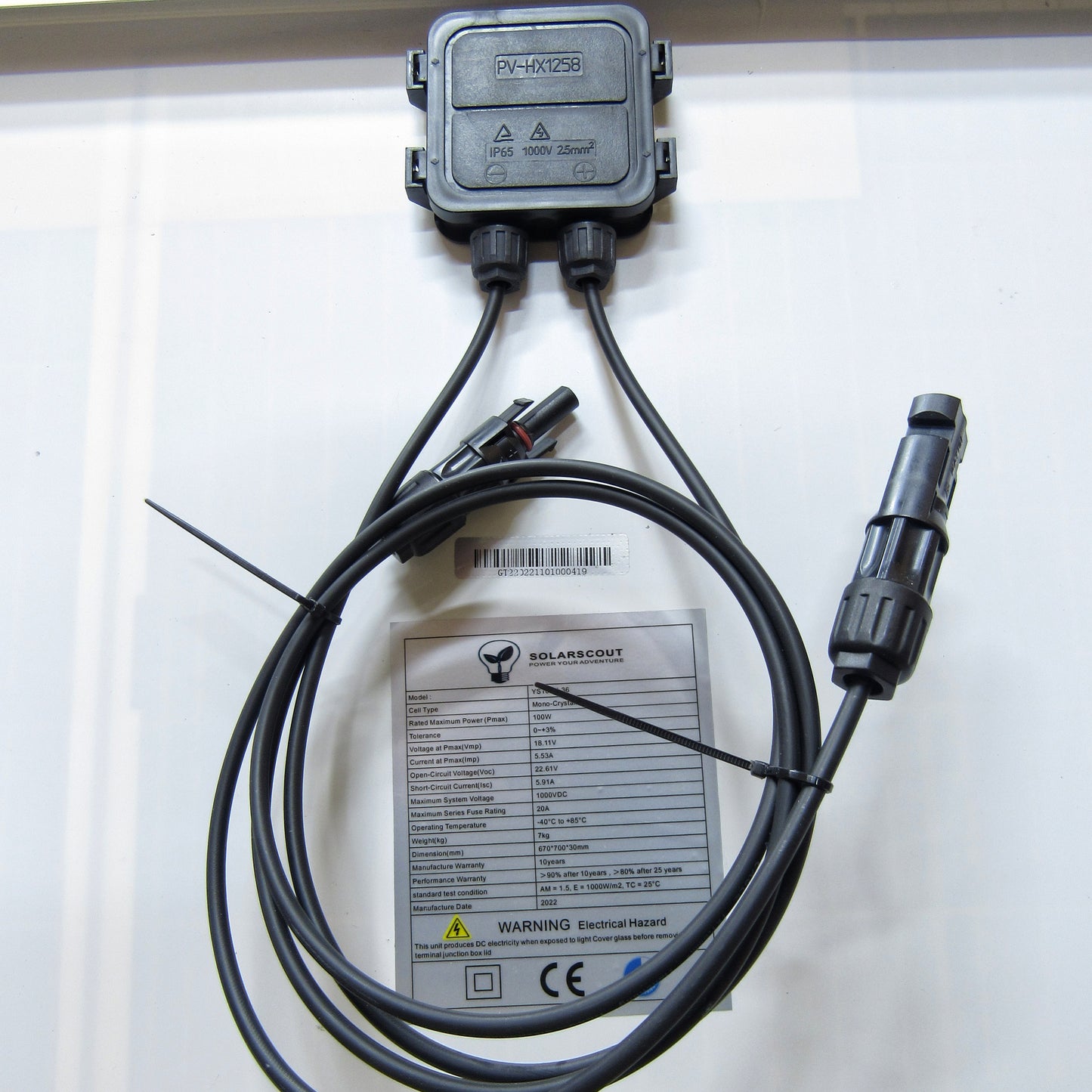

• 1 x Associated Wiring with MC4 connectors

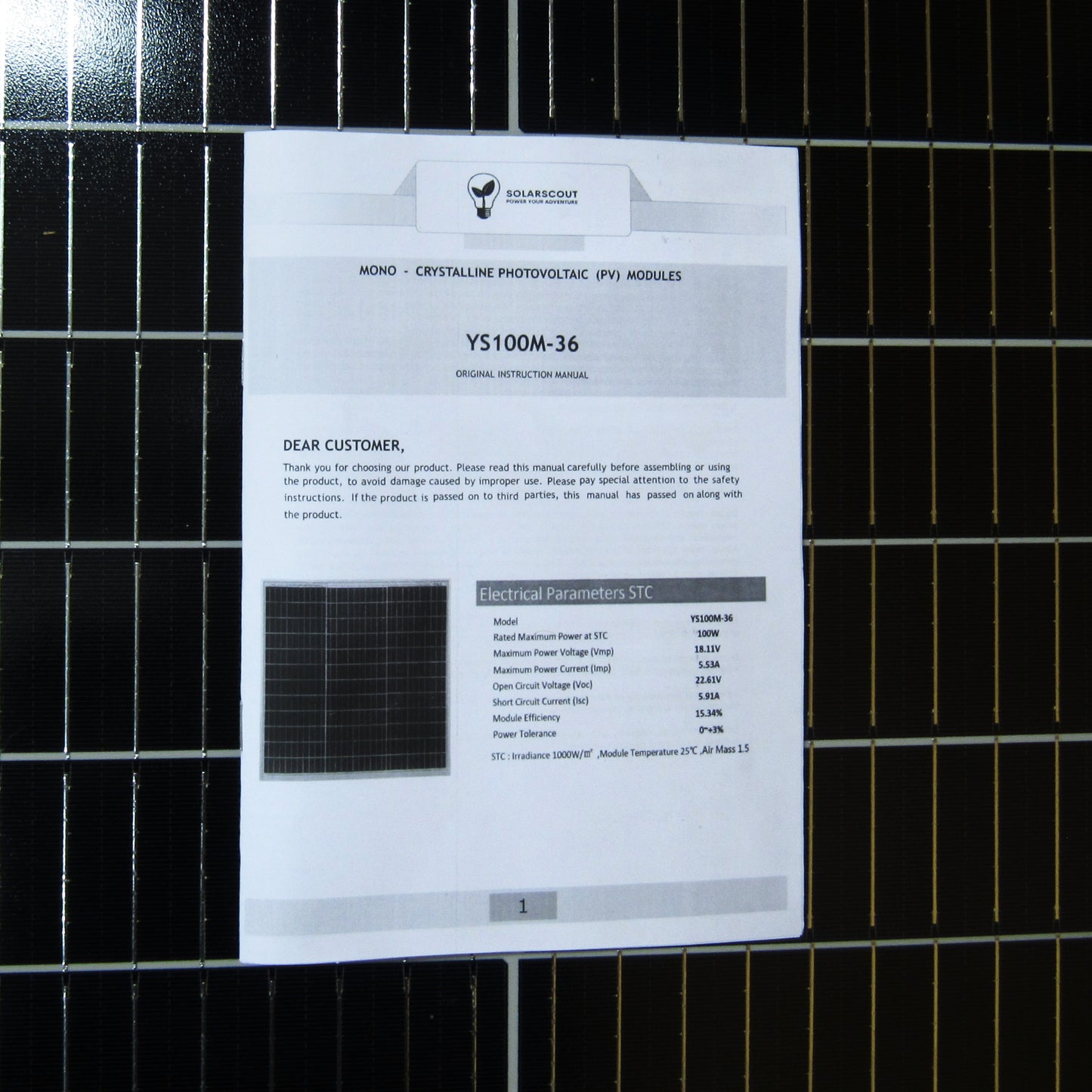

• 1 x User Manual

Multi unit buy available. Multi buy discounts available. Please get in contact for details & bespoke one off orders.

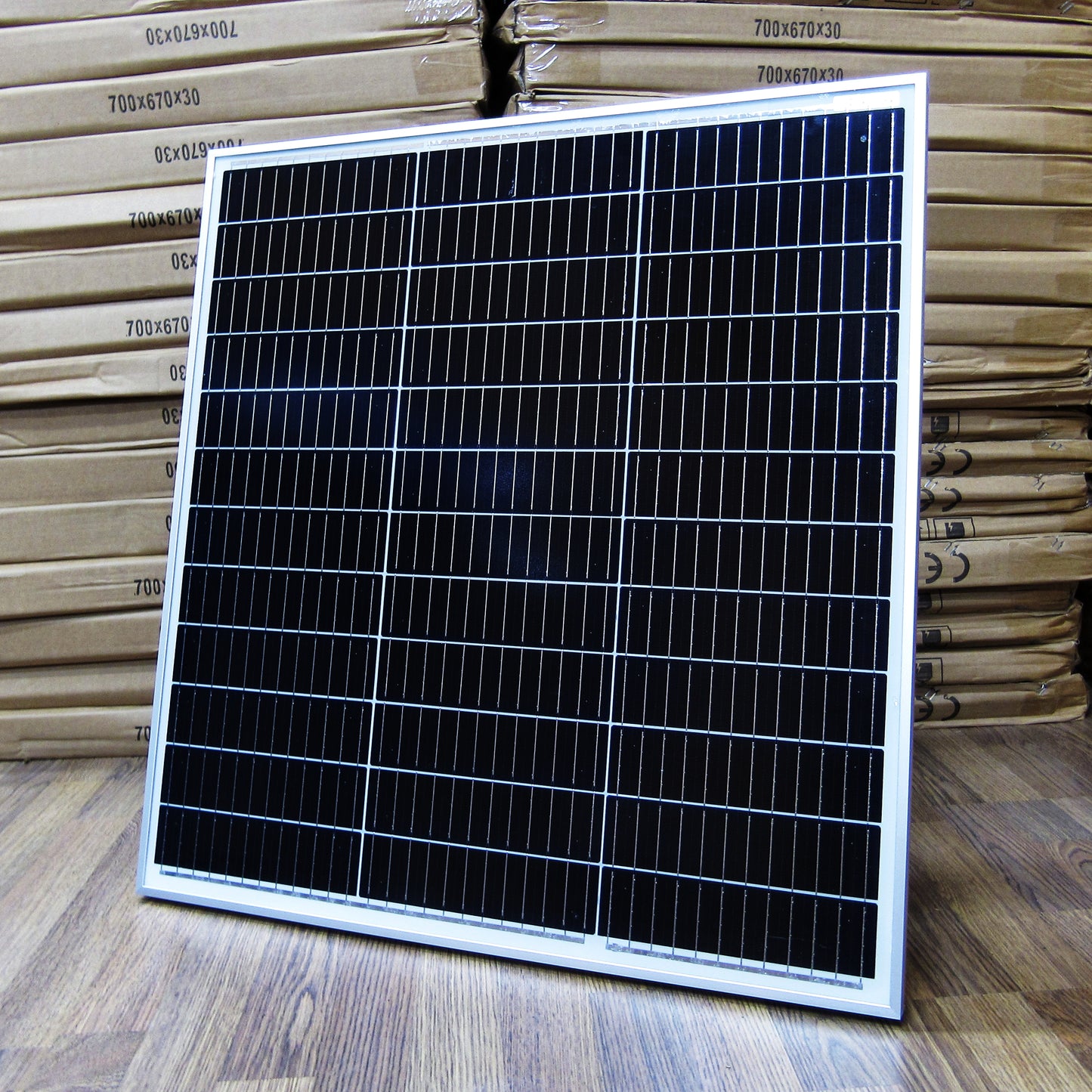

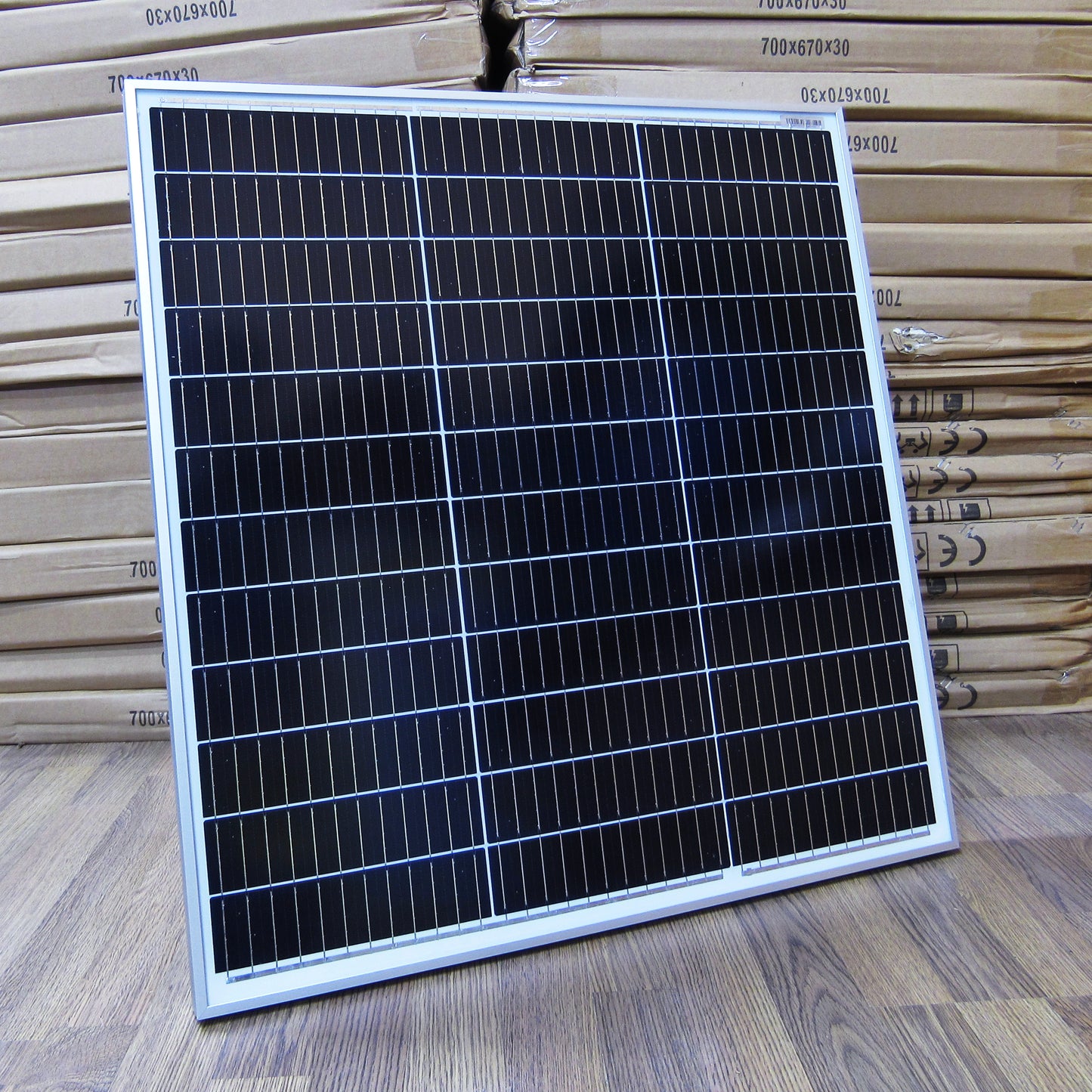

Specification Per Panel:

• Maximum power: 100 W.
• Cell type: Monocrystalline
• Maximum system voltage: 1000 VDC
• Optimum operating voltage (Vmp): 18.11V
• Open circuit Voltage (Voc): 22.61V
• Optimal operating current (imp. ): 5.53A
• Short Circuit Current (Isc): 5.91 A.
• Dimensions: *700 x 670 x 30 mm*
• Weight: 7 kg
• Manufacture Date : 2022

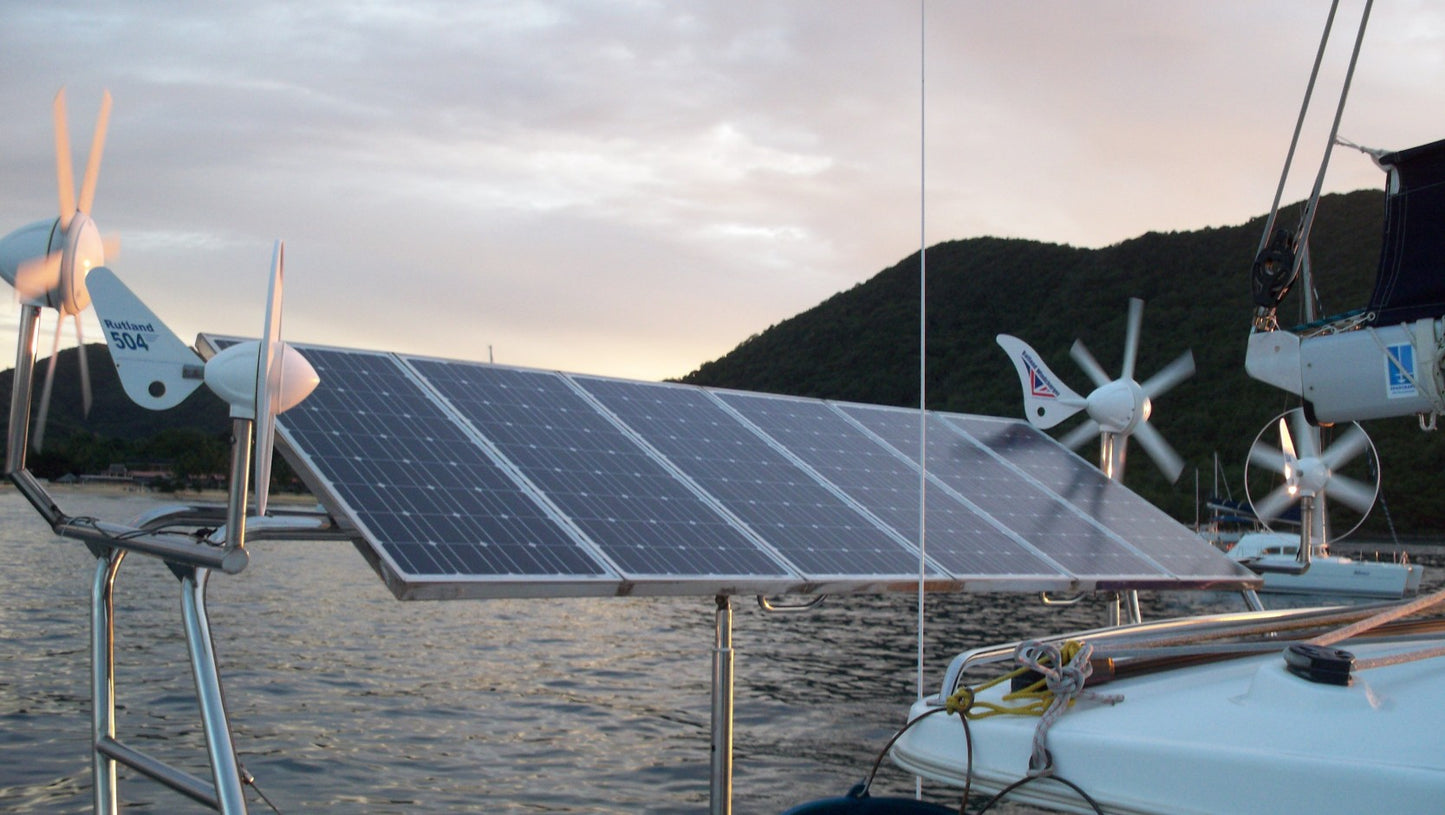

These panels are suitable for almost any use such as campervans, caravans, motorhomes, boats, yachts, buildings, houses, sheds, garages, outhouses even installed on the ground.
